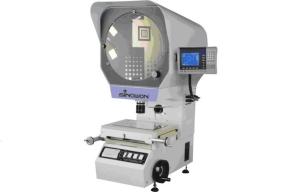

High Cost Performance Profilprojektor Optical Profile Projector with Multifunction System and Built-in Mini-printer

  • 1
  • 2

Brand Name : SINOWON

Model Number : VP400-3020

Certification : CE

Place of Origin : China

MOQ : 1 set

Supply Ability : 100 sets per month

Delivery Time : 10 days

Packaging Details : Plywood, 1540x790x1500mm, Carton

Metal Stage Size : 408x308mm

Stage Travel: X and Y-axis : 250x150mm

Accuracy : ≤3+L/200(um)

Resolution of X and Y-scale : 0.0005mm

Cooling System : Forced Cooling (3-axis-fans)

Power Supply : AC110V/60Hz; 220V/50Hz,650w

Instrument Gross/Net Weight : 260/220kg

Contact Now

High Cost Performane Profilprojektor Optical Profile Projector with Multifunction System and Built-in Mini-printer

Product Features:

400mm diameter screen with digital protractor;

Projector body lifting system to focus;

250x150mm precision movement work-stage, 300x200mm optional;

Halogen profile and surface illumination adjustable;

Geometric multifunction data processing system upgrade to DRO DP300;

Built-in Mini-printer;

Available 10x,20x,50x objective, rotary table, foot-switch, edge detector, etc.

Technical Specifications :

Reverse Image　VP400-3020(#511-451)
Obverse Image　VP400-3020Z(#511-461)
Metal Stage Size　408x308mm
Glass Stage Size　306x196mm
Stage Travel: X and Y-axis　250x150mm
Stage Travel: Z-axis　100mm (for focusing)
Accuracy　≤3+L/200(um)
Resolution of X and Y-scale　0.0005mm
ScreenDiameter :Ø435mm,Effective Range ≥ Ø400(with “* ” Reticle)
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital ReadoutDP 300 (561-301) Multifunctional Data Processing System
IlluminationSurface and Contour Illumination:24v/150w halogen lamp (adjustable)
Cooling SystemForced Cooling (3-axis-fans)
Power SupplyAC110V/60Hz; 220V/50Hz,650w
Dimension (D×W×H)　760x530x1100mm
Packing Dimension (L×W×H)　1540x790x1500mm
Instrument Gross/Net Weight　260/220kg



Standard Delivery:

Product Name

Code #

Product Name

Code #

Product Name

Code #

Digital Readout DP300

561-301

VX12-10x Objective

511*W11

Screen Clamp Device

581-341

Built-in Mini-printer

581-901

Transmitted lens

511*T11

Operation Manual

VP400



Optional Accessories:

Product Name

Code #

Product Name

Code #

Product Name

Code #

Measuring Software

581-101

Rotary Table RT2

581-521

Rotary Table RT3

581-531

VX16-20x Objective

511*W21

VX16-50X Objective

511*W31

Printer Paper

581-911

Holder Clamp

581-841

V-shape Clamp

581-831

Swivel Center Support

581-851

Working Cupboard ST 02

581-621

Foot-switch ST150

581-351

Standard Block ST120

581-801
